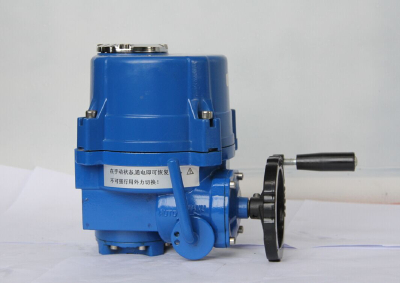

- Size: 305*260*315(mm³)
- Place of Origin: China
- Brand Name: JINGLU
- Model Number: EQS240
- Weight: 14.000 kg
Enclose: Weatherproof IP67, NAMUR 4 and 6,(IP68option) O-ring sealed
Main power supply:110/220-230VAC/1Ph/50/60Hz±10%,380/400/440/VAC/3Ph/50/60Hz±10%
Control power supply: 110 /220-230VAC/1Ph/50/60Hz±10%
Duty Cycle (modulating):S4:30~50%, 300~1200start/hour
Motor: Squirrel Caged Induction motor Class F
Limit switches: 2 each for open and close(SPDT 250VAC/I0A rating)
Torque switches: 1 each for open and close (SPDT 250VAC/I0A rating)
Stall protection/set temperature: Built in thermal protection, open150℃±5℃ ,close97℃±15℃
Travel angle: 150°±5°(0°~100°)
Position indicator: Continuous mechanical indicator
Handwheel : yes
Self locking : provided by double worm gearing(no brake)
Mechanical stopper:1 each for travel(open and close),external and adjustable
Heater: 5W (10/220-230VAC)for Anti-condensation
Cable entries : 2×PE3/4”
Ambient temperature; Basic type:-20℃~+70℃,option:-40℃~+100℃
Ambient humidity: 10%RH Min, 100%RH Max, Non-condensing
Anti vibration : XYZ10g,02-34Hz,30minutes
External coating: Dry power (Polyester)
