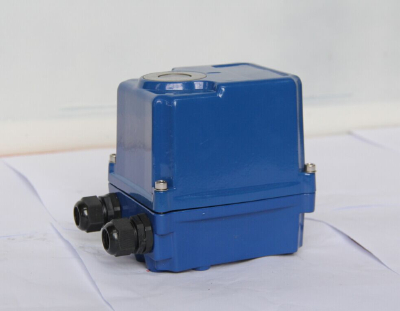

Electric actuator

Electric actuator

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1 Set per Month
  • Port: QINGDAO
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-01-14
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  170*135*155(mm³)
  • Place of Origin:  China
  • Brand Name:  JINGLU
  • Model Number:  EQS60
  • Weight: 3.500 kg

Enclose: Weatherproof IP67, NAMUR 4 and 6,(IP68option) O-ring sealed

Main power supply:110/220-230VAC/1Ph/50/60Hz±10%,380/400/440/VAC/3Ph/50/60Hz±10%

Control power supply: 110 /220-230VAC/1Ph/50/60Hz±10%

Duty Cycle (modulating):S4:30~50%, 300~1200start/hour

Motor: Squirrel Caged Induction motor Class F

Limit switches: 2 each for open and close(SPDT 250VAC/I0A rating)

Torque switches: 1 each for open and close (SPDT 250VAC/I0A rating)

Stall protection/set temperature: Built in thermal protection, open150℃±5 ,close97℃±15

Travel angle: 150°±5°(0°~100°)

Position indicator: Continuous mechanical indicator

Handwheel : yes

Self locking : provided by double worm gearing(no brake)

Mechanical stopper:1 each for travel(open and close),external and adjustable

Heater: 5W (10/220-230VAC)for Anti-condensation

Cable entries : 2×PE3/4”

Ambient temperature; Basic type:-20~+70,option:-40~+100

Ambient humidity: 10%RH Min, 100%RH Max, Non-condensing

Anti vibration : XYZ10g,02-34Hz,30minutes

External coating: Dry power (Polyester)

  • Size:  170*135*155(mm³)
  • Place of Origin:  China
  • Brand Name:  JINGLU
  • Model Number:  EQS60
  • Weight: 3.500 kg
