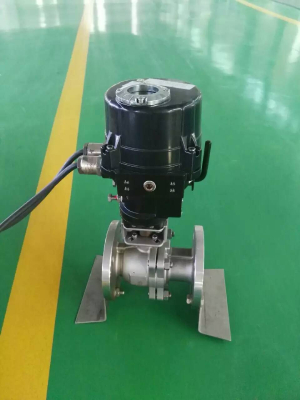

Bessie Quarter-turn Electric Actuator

Bessie Quarter-turn Electric Actuator

  • Min.Order Quantity: 1 Set
  • Supply Ability: 500 Sets per Month
  • Port: QINGDAO
  • Payment Terms: D/P,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-01-14
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  0.04
  • Place of Origin:  JINAN
  • Brand Name:  JINGLU
  • Model Number:  EQS
  • Weight: 15.000 kg

I. Standard Configuration

Protection Degree

Water-proof IP 67, NAMUR 4 and 6, (IP 68 Optional)

Voltage of Power Supply

110/220-230V AC/ 1Ph/50/60Hz± 10%

380 / 400/440/V AC/3Ph/50/ 60Hz±10%

Control Power Supply

110/220-230V AC/ 1Ph/50/60Hz±10%

Working Duty (On-off Type)

S2: 10Min~30Min/S4:20~50%

W o rking Duty (Modulating T y pe)

S4: 30~50%, 300~1,200 Starts/Hour

Motor

Whole Sealing Squirrel-cage Inductive Motor of F Degree

Limit Switch

2 for Each Open/Close Switch (SPDT 250VAC/10A Rating) (More Available )

Torque Switch

1 for Each Open/Close Switch (SPDT 250VAC/10A Rating) (More Available)

Thermal Protection and Temperature Setting

Thermal Protection Switch Set Inside (Max. 150℃± 5 , Min97 ℃± 15 )

Stroke

90°± 5 ° (0 ° ~100 ° )

Position Indicator

Continuous Mechanical Position Indication

Manual Operation Mechanism

Attached

Self-locking F u nction

Attached

Mechanical Limit

Attached (External Adjustment Available )

Anti-condensation Heater

5W (110/220-230VA C)

Cable Interface

2 PF 3/4

Ambient Temperature

Basic Type: -20 ~+70 Optional Type: -40 ~+100

Ambient Humidity

Min. Relative Humidity 10%, Max. R e lative Humidity 100%, No Condensation

A n ti-shock

XYZ 10g. 02~34Hz, 30 minutes

Housing

Aluminum Alloy Housing Processed of Hard Anodizing and Polyester Painting




II. Options

Code

Remark

Note

EX

Explosive-proof Type

Exd II BT4, BT6, CT4, CT6

WT

Watertight Type (IP68)

Continuous work underwater for 100 hours

ALS

Auxiliary Limit Switch

4 ones at most

ATS

Auxiliary Limit Switch

4 ones at most

SV

Variable torque and switch speed

Please contact this company before making an order.

PK

Potentiometer (0~1Kohm)

High precision and integrated design guarantee correct output of valve position

CT

Current Transformer (Output Signal 4~20mA)

0 Point and Stroke Adjustable (4-line and 2-line systems for option)

PCU

Intelligent Central Processing Unit (4~20mA Signal Input and Output)

Intellectualized one-push automatic correction and adjustment function

LCU

Local Control Unit

Remote control/ open/ stop/ close switch

LCD

Liquid Crystal Display

Watch the valve position clearly

LPA

Horizontal Installation

Control air door baffle; Output connecting lever, support and spherical linkage attached



III. Model Selection Form

  • Size:  0.04
  • Place of Origin:  JINAN
  • Brand Name:  JINGLU
  • Model Number:  EQS
  • Weight: 15.000 kg
