Bessie 240NM electric actuator

Bessie 240NM electric actuator

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1000 Sets per Month
  • Port: QINGDAO
  • Payment Terms: T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-01-14
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  0.03
  • Place of Origin:  JINAN
  • Brand Name:  JINGLU
  • Model Number:  EQS500
  • Weight: 11.000 kg

Introduction:

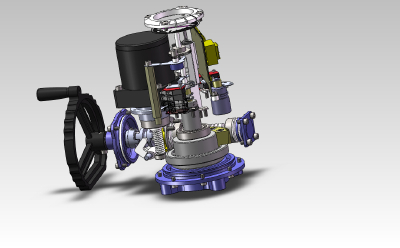

EQS series quarter turn electric actuator is a new generation product developed with introduction of foreign technology, 90% of all the parts are imported with original packaging, ensuring fully the stability of the product’s performance.

EQS series quarter turn electric actuator is a research result with our many years’ experience in the field of automation. It bears compact shape, firm structure, stable performance, and varied additive functions.

Many types to choose from the wide range of torque variation from min 60Nm to max 3000Nm, it is suitable for 90°rotary ball valves, butterfly valves, damper baffle and other 90°rotary equipments, and can meet all requirements of industrial automation control pipeline. It applies to power, metallurgy, oil, petrochemical, water treatment, paper, marine, and building automation.


Features:

1. Deft design, profit performance, high quality, light weight, large output torque(max 3000Nm)

2. Varied types, complete series (60Nm-3000Nm), approach the needs of customs, low the cost.

3. The motor designed specially generates large starting torque with high efficiency, and is equipped with thermal protector to prevent damage from overheating.

4. Hard-anodized treatment and external coating of epoxy powder to against the corrosion.

5. Good sealing, standard protection grade IP67, can choose IP68 and EdxIIBT4

6. Connect sizes up to the standard of ISO5211

7. Connecting Shaft sleeve can be changeable and easy to be install and machine;

8. Worm and Worm wheel instruction, self-locking, low noise, high output, mechanical limit adjustable by outside.

9. By hand wheel, can change between automation and manual mode.

10. Equipped torque on-off inside to protect the actuator from over load, and thermal protector.

11. Large size indicator window gives you better view of valve location

12. Varied local control units offer the best performance according to customer’s need.

13. Can choose full automation integration, noninvasive design, and infrared remote control, Modbus, profibus and hart.

  • Size:  0.03
  • Place of Origin:  JINAN
  • Brand Name:  JINGLU
  • Model Number:  EQS500
  • Weight: 11.000 kg
